Dashboard Function: Add Parts: Calendar

Overview

Add a "Calendar" to the "Dashboard". Display records from the selected site by any criteria and sorting order.

Calendar part displayed on a dashboard

Setting Procedure

General Tab

General tab of the calendar part settings screen


Column name Description
Title The name of the part.
Display Title Check this if you want to display the title.
Site ID Enter the site ID, site name, and site group name you want to display, separated by commas. Only time-limited tables or recorded tables can be specified. If multiple sites are specified, the first site will be the "Base Site" and used as a selection column in the filter tab.
Calendar Type Select the calendar type from "Standard" and "FullCalendar".
Classification (Valid only when the calendar type is "Standard") Specify the "Classification" of the calendar. For details on the "Classification" of the calendar, refer to "Table Function: Calendar Display of Records".
Period (Valid only when the calendar type is "Standard") Specify the "Period" of the calendar. For details on the "Period" of the calendar, refer to "Table Function: Calendar Display of Records".
Column Specify the "Column" of the calendar. For details on the "Column" of the calendar, refer to "Table Function: Calendar Display of Records".
Do Not Load Asynchronously If this checkbox is checked, asynchronous loading will not be performed regardless of the asynchronous loading setting. For details on the asynchronous loading setting, refer to "Dashboard Function: Add Parts".
CSS Use this to apply CSS to timeline elements. By specifying a CSS class name, you can assign any class name to each column and apply a "Style".

Filter Tab

Filter tab of the calendar part settings screen
Set the filter conditions for the records you want to output to the calendar. The option is the "Name Displayed" of the Base Site, but the selected column (ClassA, NumB, etc.) will filter the records of all tables set by the site ID.

Access Control Tab

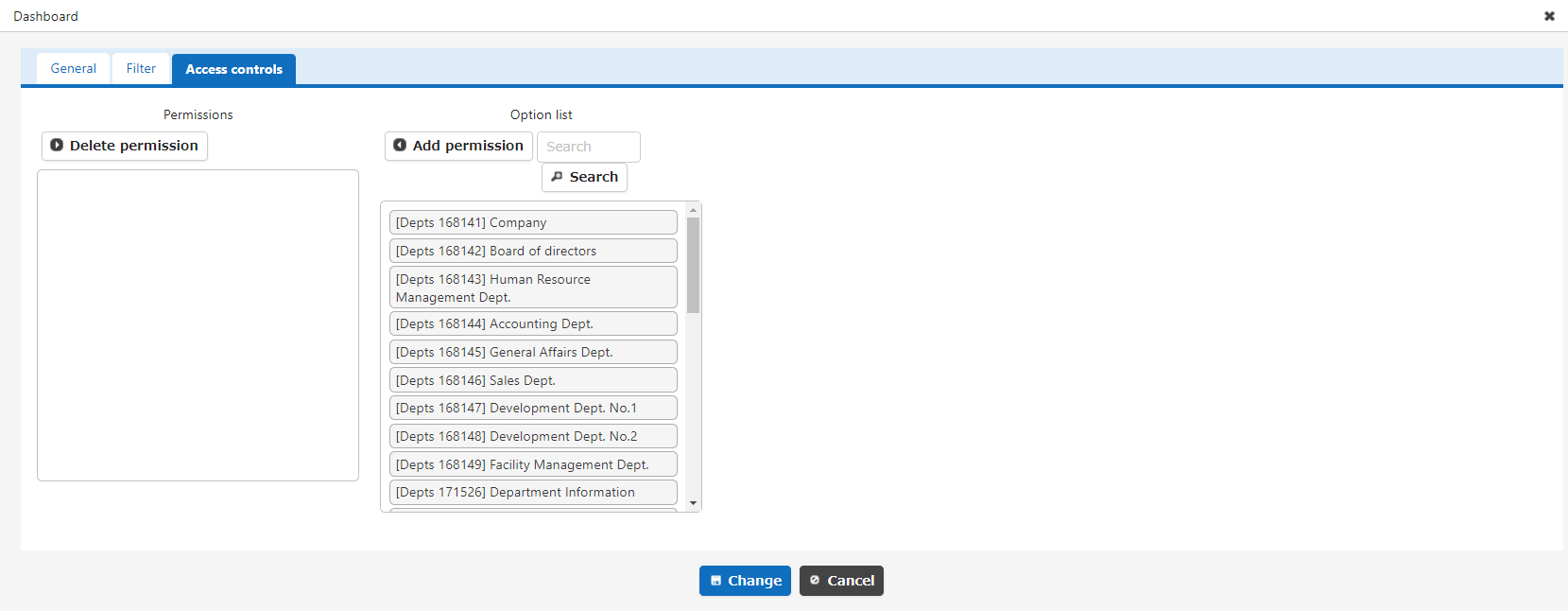

Access control tab of the calendar part settings screen
Set the reference permissions for quick access. This part will be hidden if a user without reference permissions opens the dashboard.
